Description

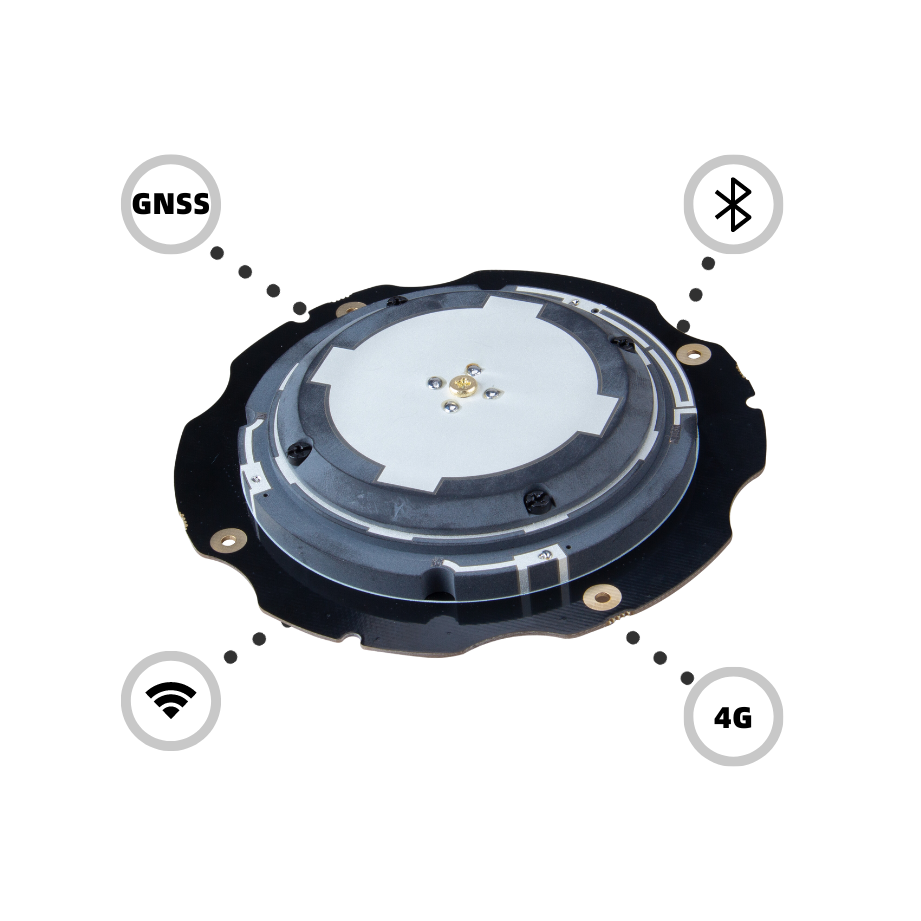

The AT410 GNSS Antenna is a compact, high-performance solution that integrates GNSS, Bluetooth, Wi‑Fi, and 4G into a single unit—making it ideal for embedded systems and applications requiring wireless connectivity alongside precise positioning. Supporting full-constellation and multi-frequency signals, the AT410 ensures sub-millimeter-level accuracy and excellent signal quality, even under challenging conditions.

With support for GPS, GLONASS, BeiDou (B1C/B2a included), Galileo, QZSS, IRNSS, SBAS, and L-Band, the AT410 delivers reliable positioning for applications ranging from surveying and construction to robotics and precision agriculture.

Its built-in low-noise amplifier (LNA) ensures a strong, clean signal with up to 40 dB gain, while the sub-millimeter phase center accuracy guarantees stable, repeatable results. The AT410 is built with a rugged housing that tolerates extreme environmental conditions, from –40°C to +85°C, and is compact enough to fit into tight installations.

🔹 Key Highlights:

• 4-in-1 Integration: Combines GNSS, Bluetooth, Wi‑Fi, and 4G for streamlined system design

• Full-Constellation Support: GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, SBAS, L-Band

• High Accuracy: Sub-millimeter phase center offset ensures precision in data collection

• High Gain, Low Noise: 40 dB LNA gain with ≤2 dB noise figure for clear signal reception

• Compact & Lightweight: Only 135mm diameter and ≤200g—perfect for mobile applications

• Rugged & Reliable: Works in extreme temperatures and high-humidity conditions

The AT410 is a reliable and space-efficient GNSS antenna tailored for modern positioning and communication systems, especially where accuracy and connectivity are critical.
